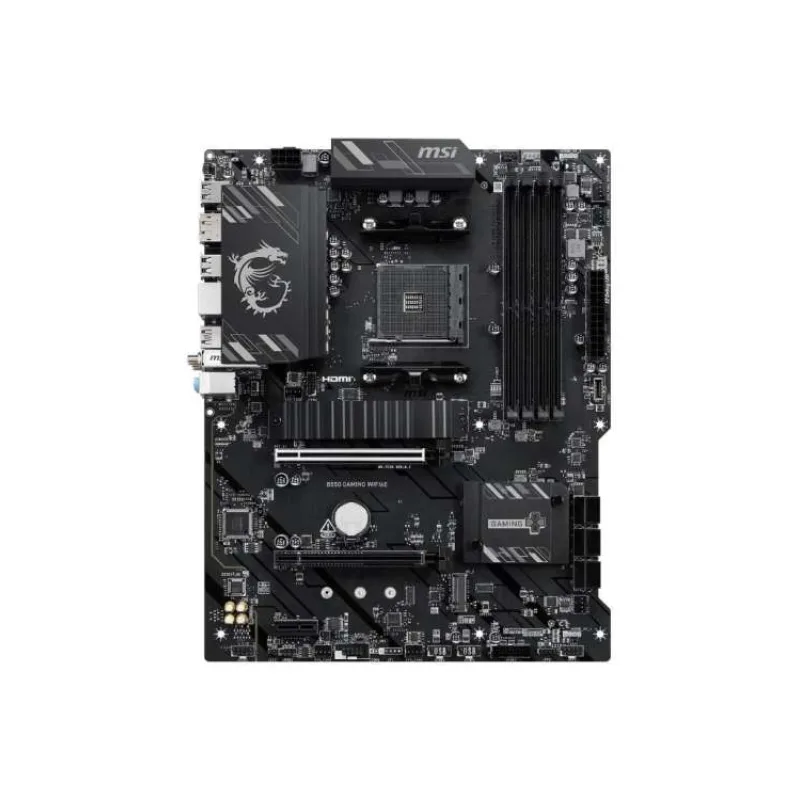

MSI B550 GAMING/ AM4/ ATX B550 GAMING

MSI B550 GAMING Chipset: AMD B550 Rozměrový formát: ATX 243.84mmx304.8mm Podpora pro procesory: AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors Patice procesoru: AM4 Paměť: *4x DDR4, Maximum Memory Capacity 128GB *Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE *Max. overclocking frequency: *1DPC 1R Max speed up to 4800+ MHz *1DPC 2R Max speed up to 3866+ MHz *2DPC 1R Max speed up to 4000+ MHz *2DPC 2R Max speed up to 3600+ MHz *Dual channel memory architecture *Supports non-ECC UDIMM memory *Supports ECC UDIMM memory (non-ECC mode) *Supports un-buffered memory Grafické porty: 1x HDMI *Support HDMI™ 1.4, maximum resolution of 4K 30Hz 1x DisplayPort *Support DisplayPort 1.2, maximum resolution of 4K 60Hz Zvuková karta: *Realtek ALC897 *7.1-Channel High Definition Audio Ethernet: Realtek 8111H 1G LAN Rozšiřující sloty: *2x PCI-E x16 slot *1x PCI-E x1 slot *PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) *PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) *PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) Úložný prostor: 2x M.2 *M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices *M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 6x SATA 6G USB: Zadní USB *4x USB 2.0 *2x USB 5Gbps Type A *1x USB 10Gbps Type A *1x USB 10Gbps Type C Přední USB *4x USB 2.0 *2x USB 5Gbps Type A *1x USB 5Gbps Type C Interní porty: Napájení *1× Power Connector (ATX_PWR) *1× Power Connector (CPU_PWR) *1× CPU Fan *1× Combo Fan (Pump_Sys Fan) *6× System Fan USB *4× USB 2.0 ports *2× USB 5Gbps Type-A ports *1× USB 5Gbps Type-C port Ostatní *2× Front Panel (JFP) *1× Chassis Intrusion (JCI) *1× Front Audio (JAUD) *1× COM Port (JCOM) *2× Addressable V2 RGB LED connectors (JARGB_V2) *1× RGB LED connector (JRGB) *1× TPM pin header (TPM 2.0) Porty na zadním panelu: *USB 2.0 *DisplayPort 1.2 *1G LAN *USB 10Gbps (Type-A) *Audio Connectors *Flash BIOS Button *HDMI™ *USB 2.0 *USB 5Gbps (Type-A) *USB 10Gbps (Type-C) OS: Windows 11 64-bit
